| Availability: | |
|---|---|
| Quantity: | |

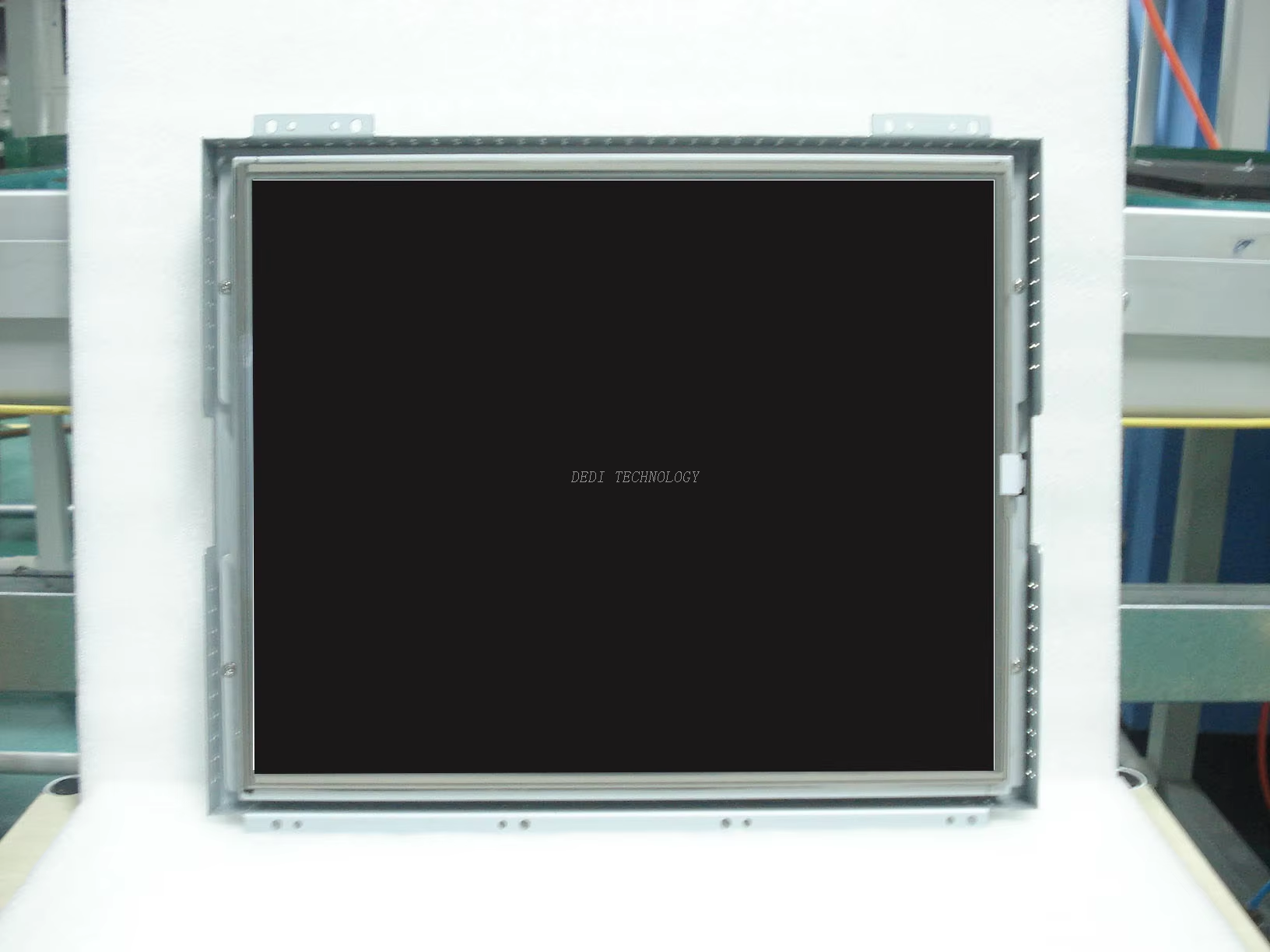

Description | 17' Open Frame LCD Monitor with Iron front bezel and resistive touch, TFT LCD 250nits, 1280x1024 pixels | |
Size | 17’’ | |
Display Area (mm) | 337.92 (H) x 270.336 (V) | |
Pixel Pitch (mm) | 0.264 (H) x 0.264 (V) | |
Resolution | 1280x1024 | |
Brightness | 250 cd/m2 | |
Contrast Ratio | 1000 : 1(typ) | |
Backlight | LED Backlight | |
Viewing Angle | -85~85(H); -80~80(V) | |
Display Colors | 16.7 colors | |
Dimension(VxHxT) | Refer Mechanical drawing | |
Touch Screen | ||
Type | Resistive touch/Pcap touch | |
Touch Connectors | USB | |
Power Information | ||
Power Source | DC 12V | |
Power Consumption | 25 W typical, normal operation | |
Power Management | VESA DPMS Compliant | |
Display Signals | ||
Plug & Play | VESA DDC 1/2B | |

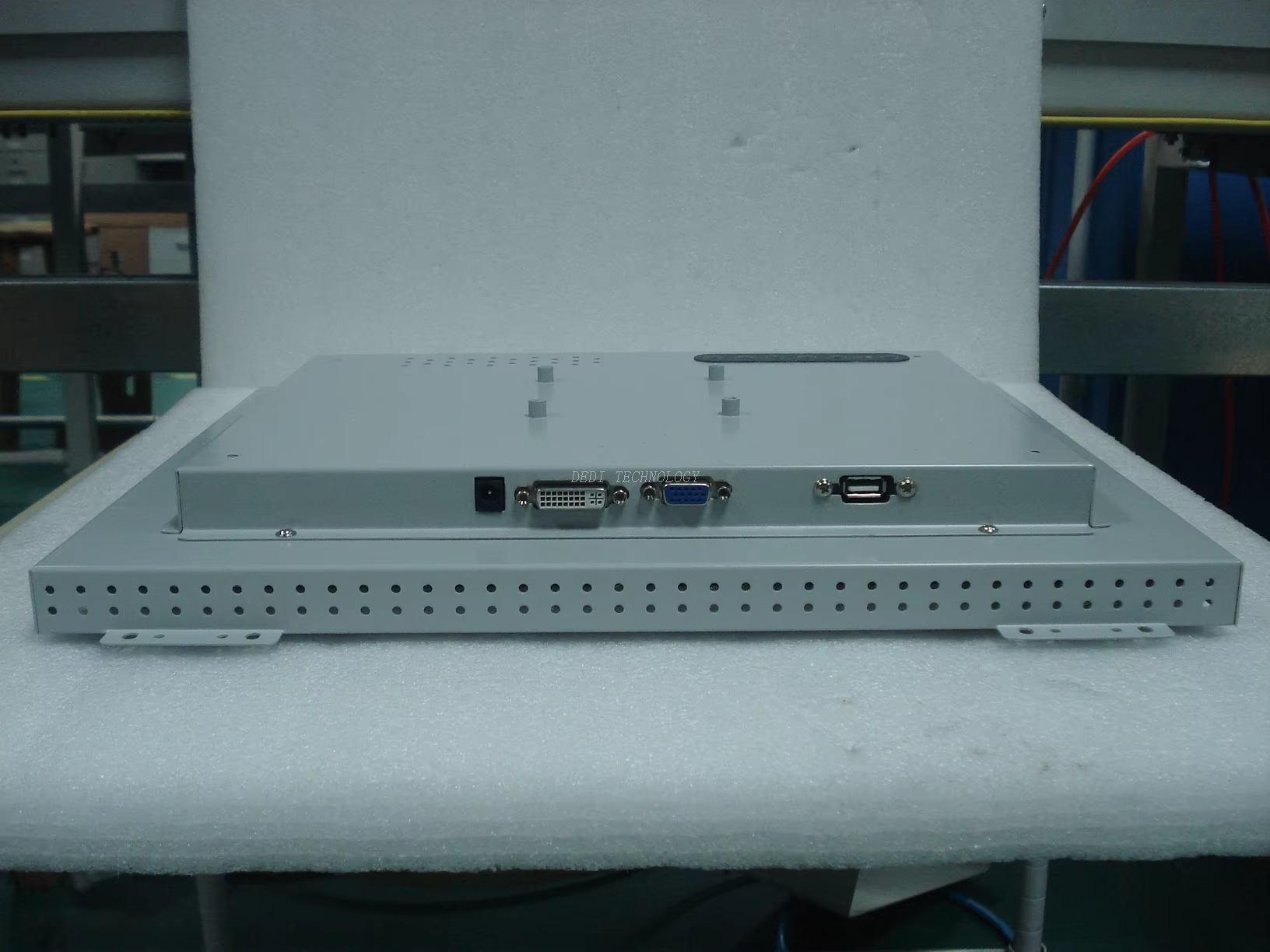

Signal Connector | 15 pin D-Sub(VGA)/DVI-D | |
Mechanical | ||
Material | Steel chassis | |
Mounting | Rear mounting ,VESA Mounting | |
Certifications |
| |
Compliance | CCC,CE,FCC,ROHS | |
Optional | ||
Touch screen | SAW,IR, Capacitive Touch Optional | |
High Brightness | 800/1000/1500nits Optional | |
Order Information | ||
AP-17OPLBT1-R | 17’’ Open frame LCD Monitor with Resistive touch screen | |
AP-17OPLBT2C | 17’’ Open frame LCD Monitor with Pcap multi touch | |
