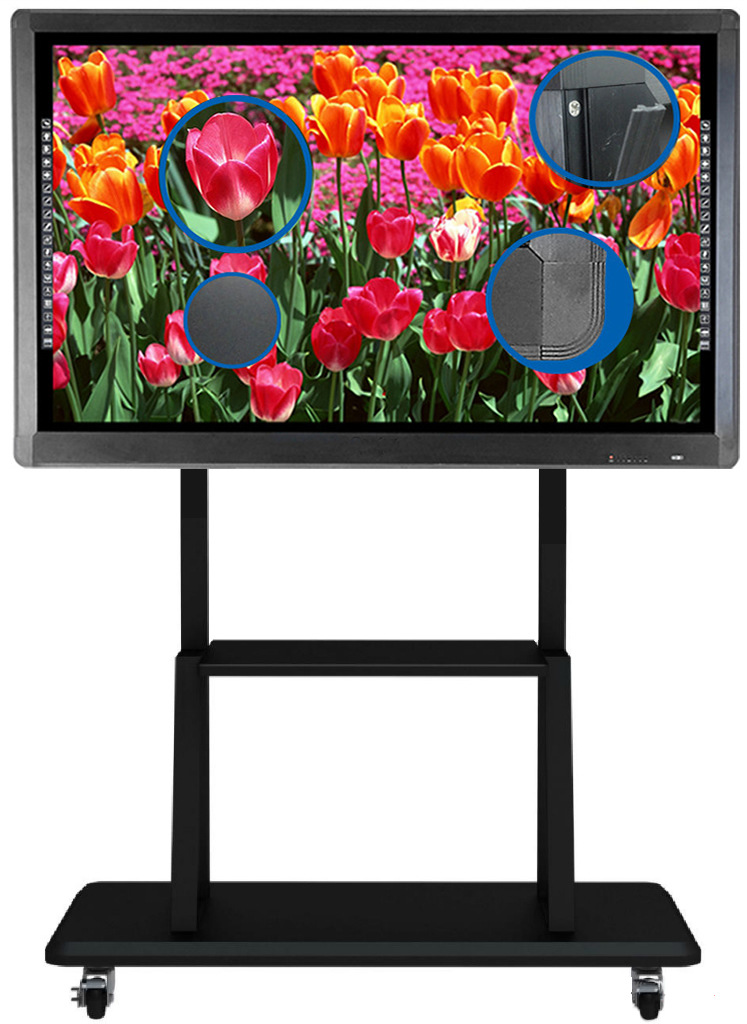

Dedi 50inch Capacitive Infrared 10 Points Touch LCD Digital WiFi Electronic Interactive Whiteboard

Share to:

  • Dedi-50"
  • DEDI
Quantity:

Specification of smart white board :



Specifications

Model

Model Dedi50"

Product Type

50”Interactive conference whiteboard

Display

Screen Type

LED

Display Color

8bit/167700000 color

Aspect Ratio

16:9

Brightness

350cd/m²

Display Area(mm)

1095.84(H)*616.41(V)

Contrast Ratio

3000:1

Resolution

1080(H)*1920(V)

Viewing Angle

178°

Response Time

6.5ms

Life Time

50,000 Hrs

Refreshing Frequency

60Hz



Video/Audio

Video Decode

Support H.264,VP8,RV,WMV,AVS,H.263,MPEG4

Speaker Type

Built-in Speaker

Max Output Power

8W*2

Touch System

Writing Latency

17ms

Surface Protection

Toughened Glass with Level 7 of Mohs Standard

Sensing Type

Infrared System(3 points writing and 6 points touch)

Communication Mode

Full-speed USB 2.0 (driver free)

Response Area

>5mm

Output Coordinate

32767*32767

Response Time

<10ms

Life Time

Over 80,000 hrs

Android

System Version

Android 4.4

USB

1*USB3.0 and 1*USB2.0

CPU

ARM Cortex A7 Quad-Core

HDMI input

3

RAM

1G DDR3

VGA input

1

ROM

8G

AV input

1

WLAN

RJ45

TV

Support DTMB/ATV

WIFI

802.11b/g/n

Earphone output

1

Software Functions

Writing

Be in writing mode when boot-up

17ms writing delay time, the ultimate real-time writing experience.

make annotating anywhere

3 points writing and 6 points touch

Multi-choice of writing pen thicknesses, colors and background colors

Support gestures erase

Input

HDMI/VGA input,1080p support

Wireless Display

Windows mirror(need to install a software)

Mac Airplay

iPhone(>iPhone 4s)/iPad

DLNA:support picture, audio, video, office, PDF

Remote control

Mobile Virtual Air Mouse

Mobile Virtual Keyboard

start any app in touch panel by mobile

Screen Mirror

Screen mirror back to mobile, 1 frame/s

Office

Office Suite preloaded

Network disk

Office Suite and ES browser preloaded

Email

A Third party Email Client is preloaded

Power

Input

AC:100~240V 50/60Hz

Overall Power

100W

Physical Specifications

Dimension(L*H*W)

1173.7*694.3*71mm

Dimension(package)(L*H*W)

1326*202*841mm

VESA

400*400mm

Wall-hanging Screw Spec

M6

Gross Weight

33.5KG

Net Weight

32.5KG

Accessories

AC Power Cable

1(1.8 meters)

User manual

1(Electronic files)

Warranty Card

1

Writing Pen

1

WIFI Antenna

1

Eraser

1

Remote Control

1

HDMI Cable

1(3 meters)

VGA Cable

1(3 meters)



Others

Environmental Conditions

Operation Temperature

0℃~40℃



Operation Humidity

10%~90%
